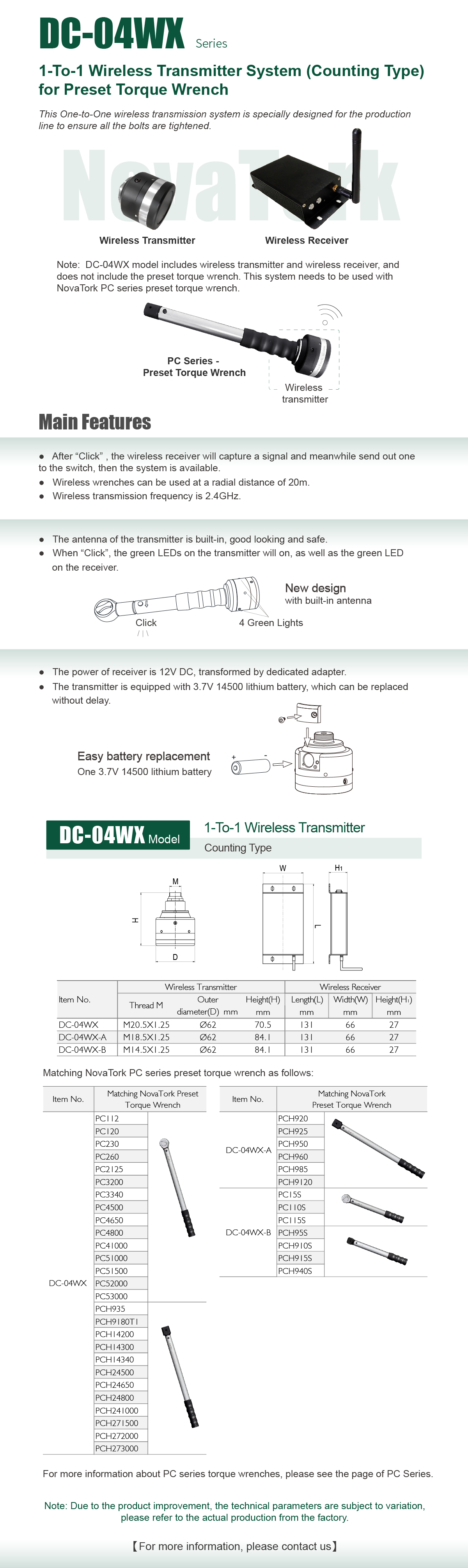

DC-04WX Series 1-To-1 Wireless Transmitter System (Counting Type) for Preset Torque Wrench

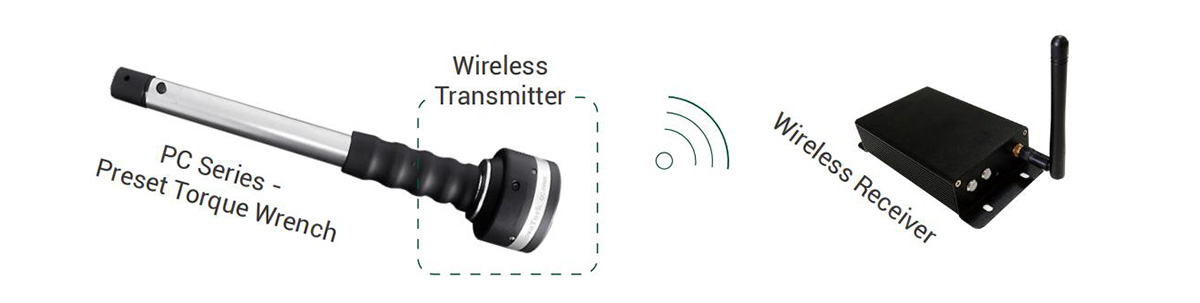

●   This One-to-One wireless transmission system is specially designed for the production line to ensure all the bolts are tightened.

●   After “Click” , the wireless receiver will capture a signal and meanwhile send out one to the switch, then the system is available.

●   Wireless wrenches can be used at a radial distance of 20m.

●   Wireless transmission frequency is 2.4GHz.

●   The power of receiver is 12V DC, transformed by dedicated adapter.

●   When “Click”, the four green LEDs around the transmitter will on, as well as the green LED on the receiver.

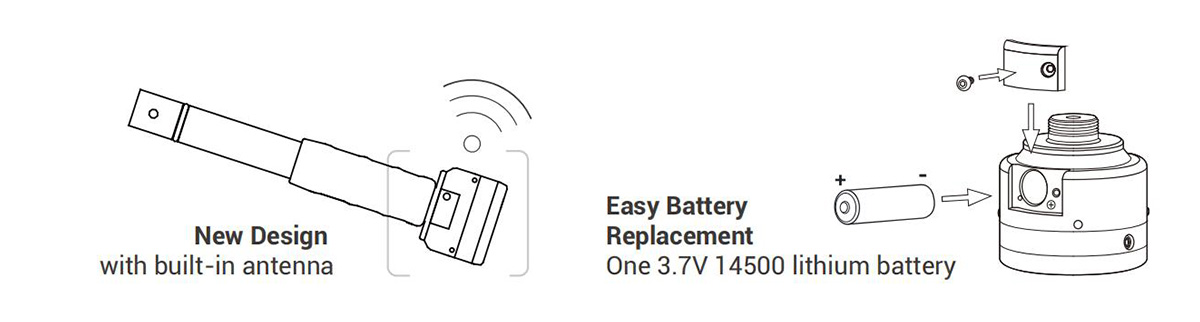

●   The transmitter is equipped with 3.7V 14500 lithium battery, which can be replaced without delay.

●   The antenna of the transmitter is built-in, good looking and safe.

Note: DC-04WX model includes wireless transmitter and wireless receiver, and does not include the preset torque wrench. This system needs to be used with NovaTork PC series preset torque wrench.
