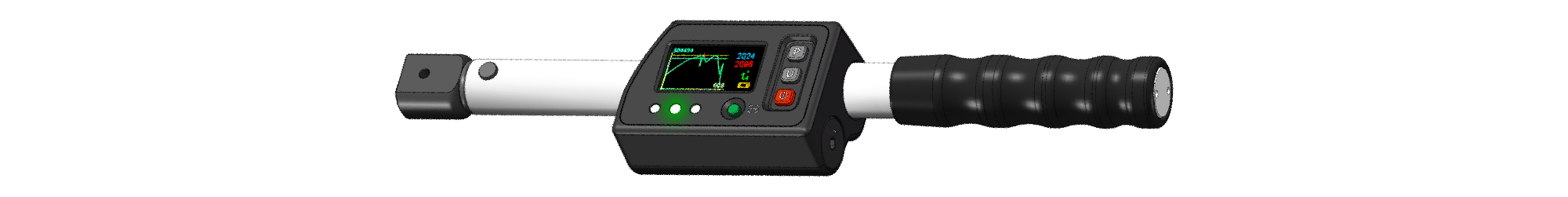

WPE Series – WiFi Mechatronic Preset Torque Wrench and Centralized Control Software

●   Accuracy:   Torque: CW±4% from 20% to 100% of capacity;

     Angle: ( ±1% of reading) + ( ±1° @ angular speed of 10°/s~180°/s) +( ±1° of test fixture)

●   LCD screen display, convenient for real-time viewing. The wrench can be adjusted against the displayed torque value.

●   Maintaining the Click audible alarm feature of the mechanical wrench.

●   4 Torque units are available:  N.m, Ft.lb, In.lb, KgNaN

●   First peak value mode

●   Adjustable mechanism to set the torque value setting, and  minimum angle value can be set in the system to prevent the operator from operating the same screw repeatedly.

●   Peak value and judgment light status remain displayed after unloading.

●   During continuous operation, the wrench will automatically reset to zero.

●   Automatically shuts down after standby time.

●   Battery level is displayed on the screen.

●   Using 14500 high-capacity rechargeable lithium battery, which can be charged through the Type-C port on the wrench. The battery can be removed and charged on a dedicated charger for replacement, without delaying work.

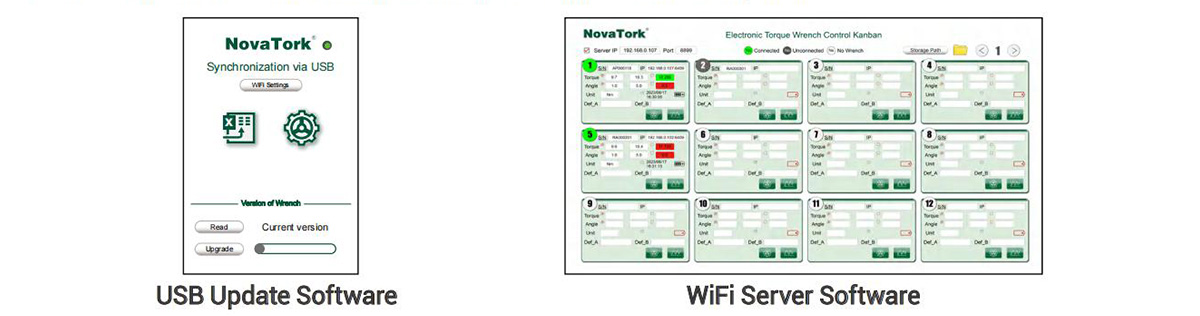

●   WiFi Server software can receive instant data from 24 wrenches working at the same time and record the information. Each screen can observe 12 wrenches.

●   Through the USB Update software, you can set the : accuracy, angle value, etc. for judgment, and download them directly into the wrench.

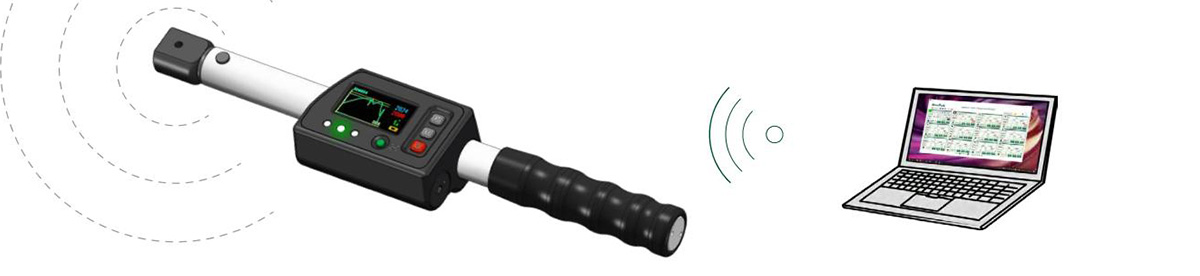

●   The data of operating the wrench can be automatically sent to the centralized control center and saved.

●   The wrench also has its own memory, which can save 1000 groups of data. If there is no WiFi communication temporarily, the data will be automatically stored in the memory of the wrench and will be uploaded automatically after WiFi is restored. You can also upload the data manually via the USB upload software.
