DS Series - Dial Torque Wrench

DS Series - Dial Torque Wrench

●   Accuracy: ±3% from 20% to 100% of capacity (±4% accuracy for wrenches with capacities above 400N.m).

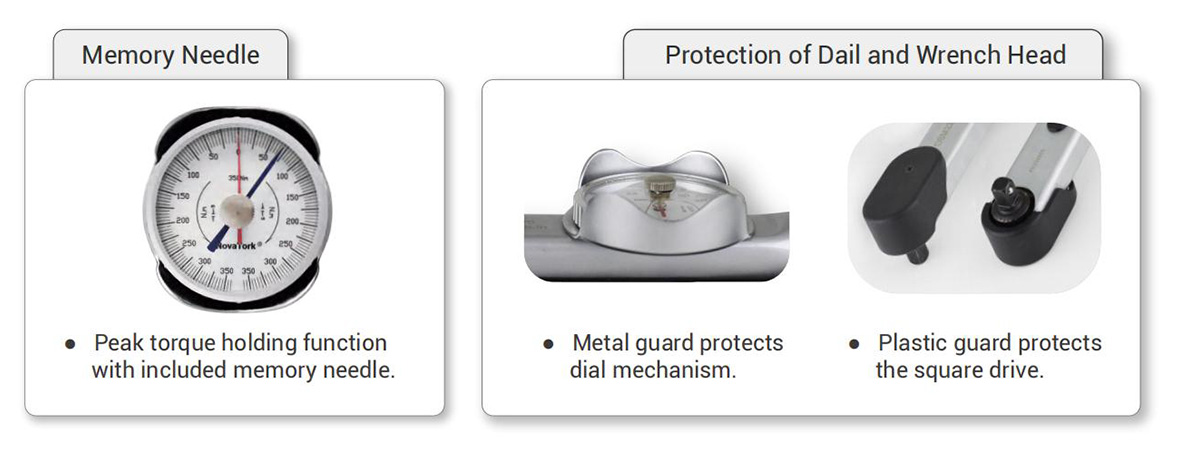

●   Peak torque holding function with included memory needle.

●   Wave shaped metal guard protects dial mechanism.

●   Plastic guard protects the square drive.

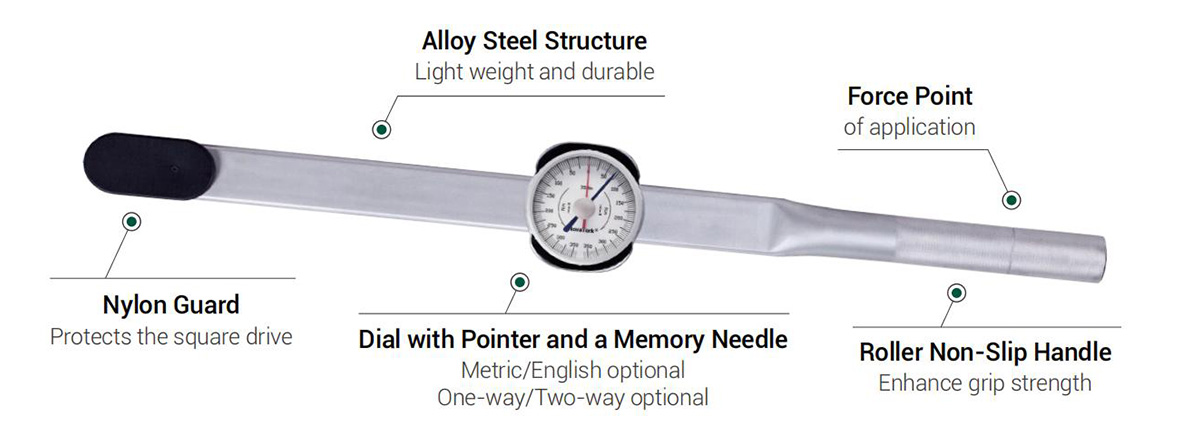

●   Alloy steel structure, light weight and more durable.

●   Two models designed for different applications:

   - DSM/DS model: One-way dial torque wrench, clockwise operation only, toggle between Metric/English scales by rotating the dial 180°.

   - DSM-D/DS-D model: Two-way dial torque wrench, bidirectional operation with Metric or English scale.

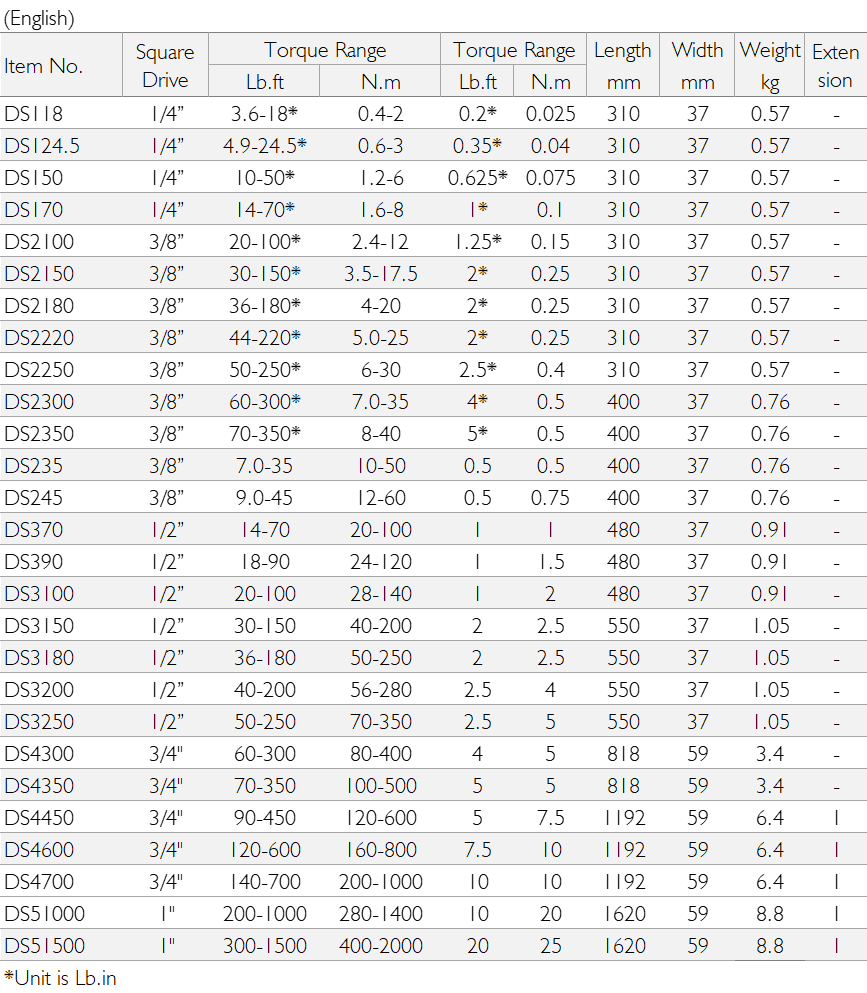

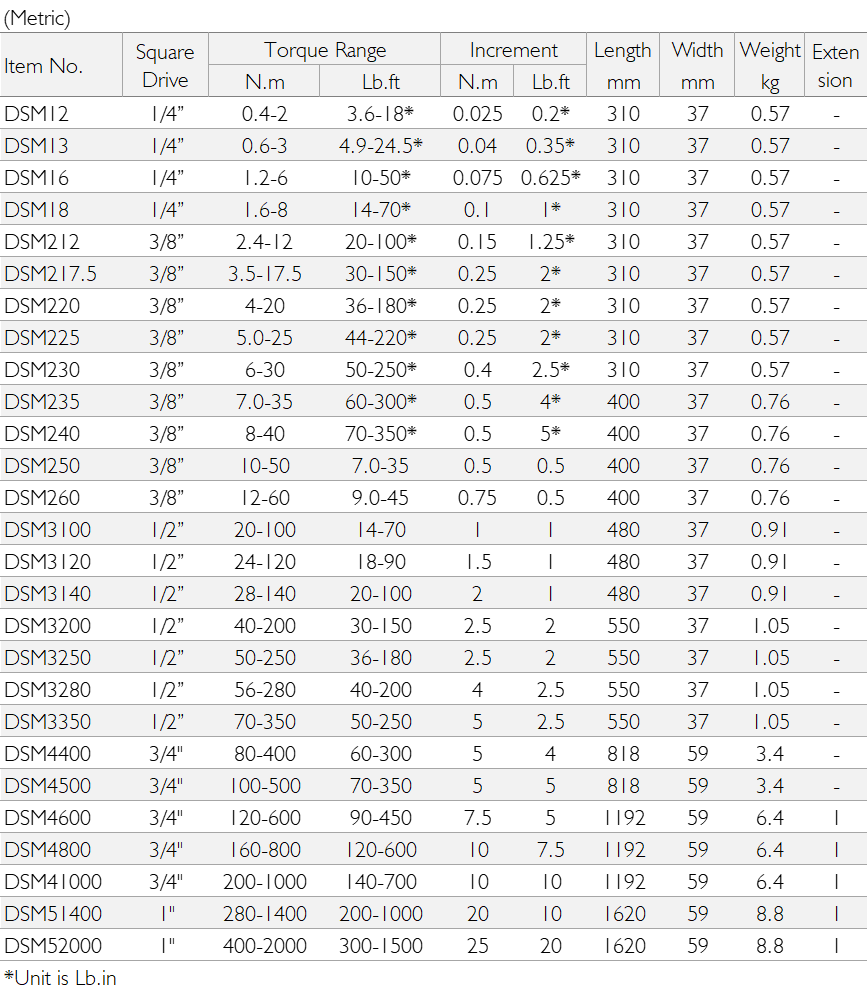

DSM Model - One-Way Dial Torque Wrench

Clockwise operation only, toggle between Metric/English scales

by rotating the dial 180°

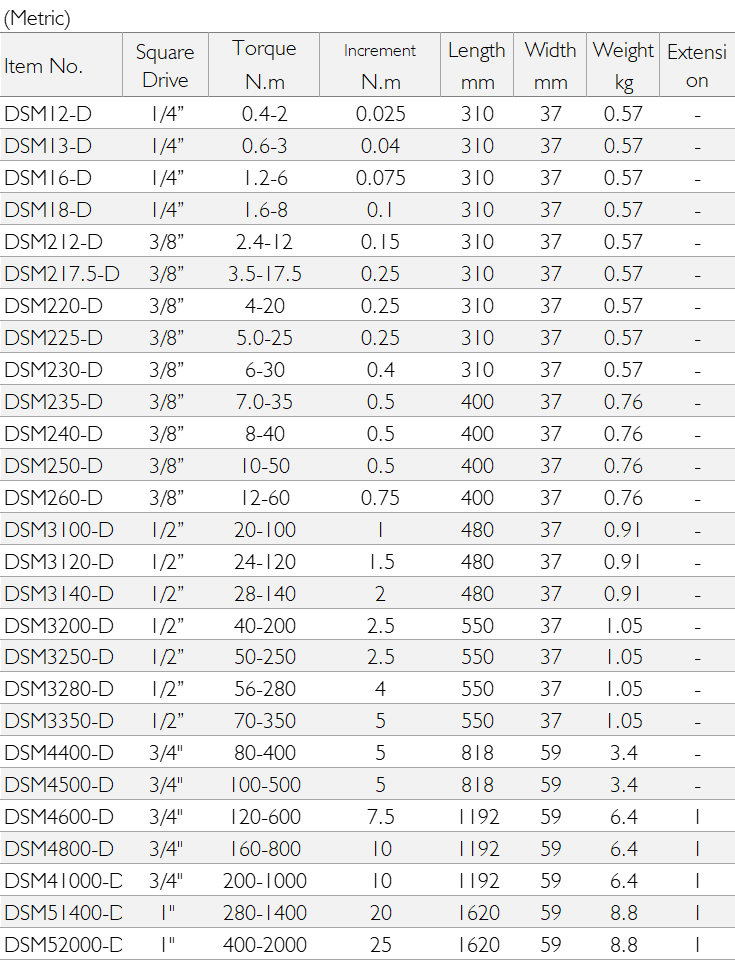

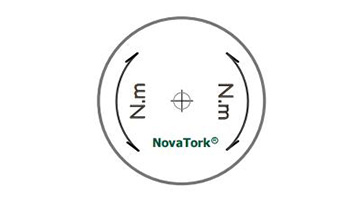

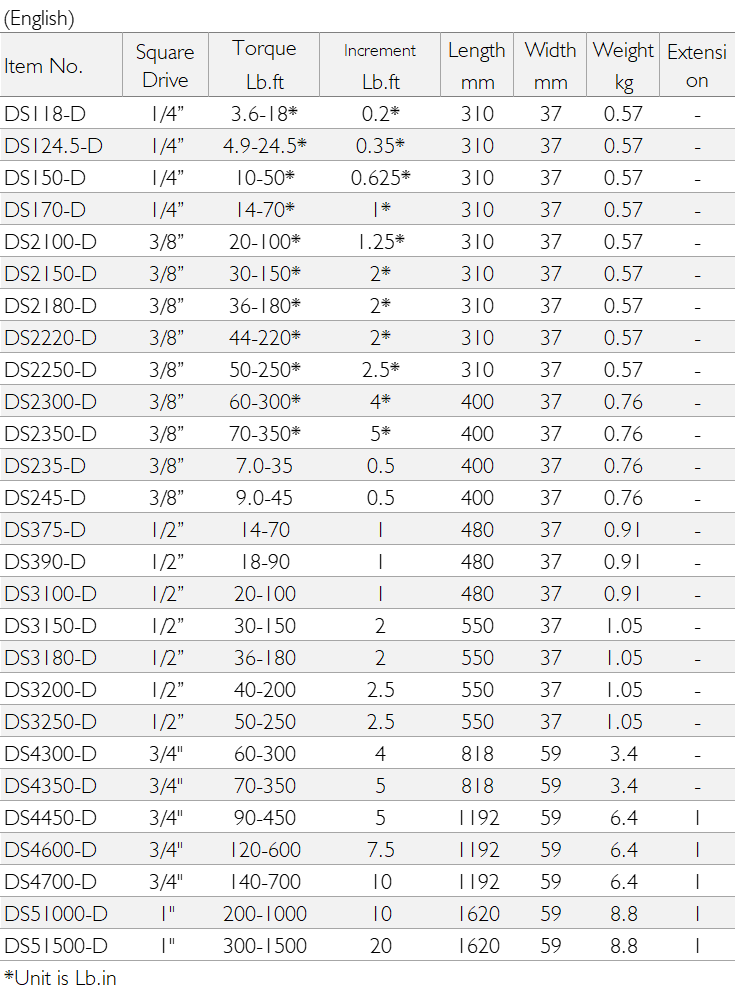

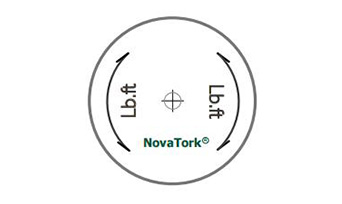

DSM-D Model - Two-Way Dial Torque Wrench

Bidirectional operation with Metric or English scale

Note: The dial scale starts at 0, however the torque adjustment range is as shown in the table above.
